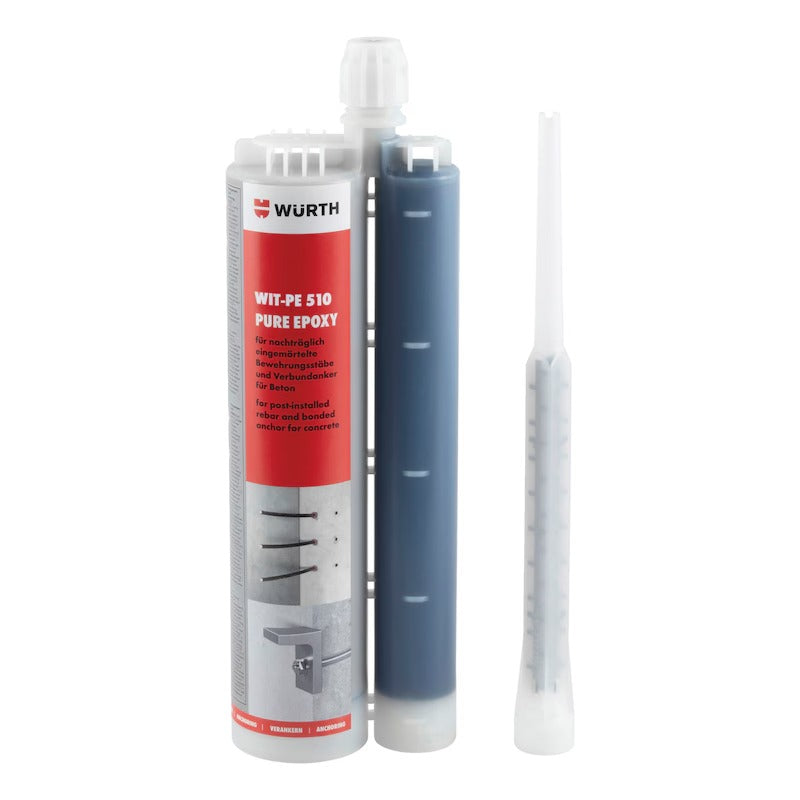

Injection Mortar WIT-PE 510
  • Injection Mortar WIT-PE 510
Injection Mortar WIT-PE 510

Injection Mortar WIT-PE 510

Wurth pure epoxy mortar
Rs. 3,750.00 Rs. 7,226.00
Product Description

Product Description

  • Container: Cartridge
  • Contents: 585 ml
  • Suitable application gun: HandyMax 585 ml, Application gun MULTI, Pneumatic application gun 585ml, Battery-powered application gun 585ml
  • Min./max. processing temperature /conditions: 5 to 40 °C / temperature in the anchorage ground during processing and hardening
  • Min./max. ambient temperature / Conditions: -40 to 70 °C / after completely curing process
  • Temperature resistance, long-term temperatures max.: 43 °C
  • Temperature resistance, short-term temperatures max.: 70 °C
  • Shelf life from production/conditions: 24 Month / cool and dry storage area, 5°C to 25°C
Approval: ETA-20/1037, ETA-20/1038Chemical basis: Pure-Epoxy, styrene freeColour: Grey

Specification
    Standard pure epoxy mortar (long processing time, deep effective anchorage depths). For bonded anchor, concrete and post-installed rebar connection with subsequent mortaring (REBAR)
    Two-component reactive resin mortar, pure epoxy, styrene-free

    Anchor rod W-VI-A, anchor rod W-VD-A, standard threaded rod with acceptance test certificate 3.1

    Post-installed rebar connection with subsequent mortaring

    Cartridge can continue to be used until the best before date, by changing the mixer nozzle or resealing it with the end cap

    Fixing point, cracked and non-cracked concrete M8 to M30:

    Anchoring of threaded rods in natural stone (without approval/assessment)
    Proof of Performance
    • European technical assessment ETA-20/1038: Individual fixing point + cracked and uncracked concrete (anchor rod W-VI-A, anchor rod W-VD-A, standard threaded rod with acceptance test certificate 3.1)
    • European technical assessment ETA-20/1037: Post-installed rebar connection with subsequent mortaring (REBAR)

    Application

    • Suitable for attaching metal structures, metal profiles, wooden structures, brackets, pipes, cable conduits, etc.
    • Suitable for structural expansions, ceiling and wall outlets, expansion of load-bearing structures, reinforcement of load-bearing structures, attachment of balconies and canopies, sealing of temporary openings and "forgotten" reinforcing bars
